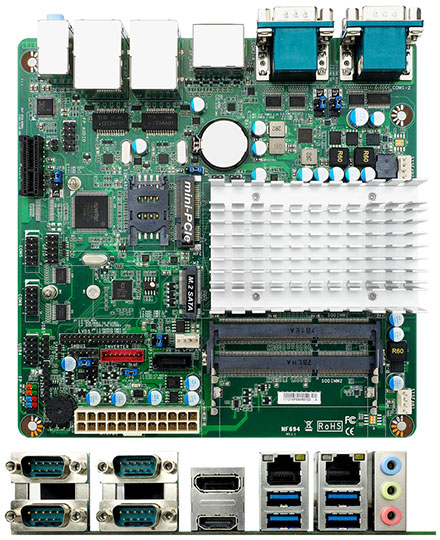

Jetway JNF694-3455 (Intel Apollo Lake)

Jetway JNF694-3455 (Intel Apollo Lake)
  • SIM Card Holder !
  • 2x LAN !

The JETWAY JNF694 series are Mini-ITX form factor board adopts the Intel® Apollo Lake SoC Processor. The board supports DDR3L 1866Mhz SODIMM memory, up to 8GB. Featuring the integrated Realtek Gigabit Ethernet controller, the JNF694 offers 10/100/1000Base-TX Ethernet devices for network transmission. SATAIII (6Gb/s) interface and one M.2 (M-key, 2242/2260) offer storage devices. One Mini PCIe interface, four USB3.0 ports, three USB2.0 ports and four to six COM ports provide versatile expansion. The JNF694 offers DP interface which can support max. 4K@60Hz resolution. Because of the above features, JNF694 is one of the best selections for digital signage and automation applications.
< [more]

Share

229.00 EUR
incl. 19% VAT, plus shipping
In Stock (9 pcs)
Add to cart

The JETWAY JNF694 series are Mini-ITX form factor board adopts the Intel® Apollo Lake SoC Processor. The board supports DDR3L 1866Mhz SODIMM memory, up to 8GB. Featuring the integrated Realtek Gigabit Ethernet controller, the JNF694 offers 10/100/1000Base-TX Ethernet devices for network transmission. SATAIII (6Gb/s) interface and one M.2 (M-key, 2242/2260) offer storage devices. One Mini PCIe interface, four USB3.0 ports, three USB2.0 ports and four to six COM ports provide versatile expansion. The JNF694 offers DP interface which can support max. 4K@60Hz resolution. Because of the above features, JNF694 is one of the best selections for digital signage and automation applications.

  • Intel® Apollo Lake SoC Processor
  • 2 * DDR3L SODIMM Up to 8 GB
  • 2 * 10/100/1000 Base-TX Ethernet Ports
  • Support 1 * HDMI + 1 * DP display
  • 4/6 * COM, 4 * USB3.0 & 2 * USB2.0
  • 1 * PCIe x1 slot, 1* Mini PCIe slot (1* full size), 1 * M.2 (M-key, 2242/2260)
  • Support 1 * SATA III (6Gb/s)
  • 24-pin ATX PWR

 Model  JNF694-3350/4200  JNF694L-3350/4200
Model – JNF694-3350
– JNF694-4200
 – JNF694L-3350
– JNF694L-4200
Part Number – JNF694-3350
– JNF694-4200
 – JNF694L-3350
– JNF694L-4200
 Form Factor
Dimensions – Mini-ITX (6.7-in * 6.7-in, 170 * 170mm)
 Processor System
CPU – Intel® Apollo Lake SoC Processo
Core Number – (by CPU)
Max Speed – (by CPU)
L2 Cache – (by CPU)
Chipset – SoC
BIOS – AMI Flash ROM
 Expansion Slot
Mini-PCIe – 1 (full size)
mSATA – 0
PCIe – 1 * PCIe x1
M.2 – 1 (M-key, 2242/2260)
SIM Card Holder – 1
 Memory
Technology – Dual CH DDR3L 1866MHz SDRAM
Max. – 8GB
Socket – 2 * SO-DIMM – 1 * SO-DIMM
 Graphics
Controller – Intel® HD Graphics
VRAM – Shared Memory
VGA – 0
LVDS – 1 (max. 1920 x 1080@60Hz resolution)
eDP – 0
HDMI 1.4 – 1 (Max. Resolution : 3840*2160@24Hz)
DisplayPort 1.2 – 1 (Max. Resolution : 4096*2160@60Hz)
MultiDisplay – Triple Displays
 Ethernet
Ethernet – 10/100/1000 Mbps
Controller – PCIe GbE LAN : Realtek RTL8111H
Connector – 2 * RJ 45 – 1 * RJ 45
 Audio
CODEC – HD Audio: Realtek ALC662
Channel – 6 Channel
 SATA
Max Data Transfer Rate – 1 * SATAIII (6.0Gb/s)
 Rear I/O
VGA – 0
HDMI – 1
DisplayPort – 1
Ethernet – 2 – 1
USB – 4 * USB 3.0
Audio – 3 (Line-In, Line-Out, MIC)
Serial / Parallel – 4 (COM1 support RS232/422/485) – 4
PS2 – 0
DC-input – 0
 Internal Connector
USB – 3 * USB 2.0
PS/2 – 1
LVDS / inverter – 1
eDP – 0
VGA – 0
Serial – 2 – 0
SATA – 1 * SATAIII (6.0Gb/s)
mPCIe – 1 (full size)
mSATA – 0
M.2 – 1 (M key-2242, 2260)
GPIO – 1 (8 bit)
Chassis intrusion – 1
Audio Header – 1
SMBUS/ I2C – 1
AT mode – 1
TPM – 1 (on board option)
Others – 0
 Watchdog Timer
Output – From Super I/O to drag RESETCON#
Interval – 256 segments, 10sec…255min
 Power Requirements
Input PWR – ATX PWR Connector
Power On AT/ATX Supported
– AT : Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
 Certifications
Certifications – CE, FCC, RoHS, REACH
 Environment
Temperature – Operating: 0°C ~ 60°C(with 0.7m/s air flow)
– Storage: -20°C ~ 85°C
 Warranty
Warranty – 2 Years Limited Warranty
Data sheet Download (PDF)
