Jetway JNC8J-I3455 (Intel Apollo Lake)

PRODUCT IS CURRENTLY NOT AVAILABLE !

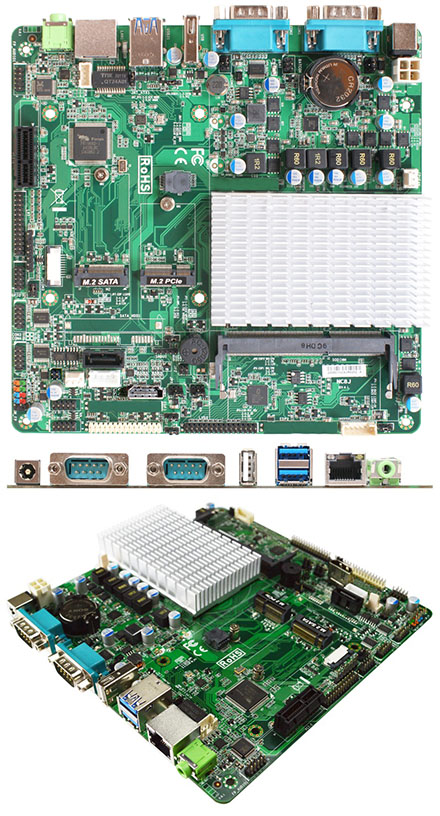

Jetway JNC8J-I3455 (Intel Apollo Lake)

  • Intel® Apollo lake J3455 SOC (Co-lay N3350)
  • Onboard Intel® J3455 1.5GHz Quad Cores CPU
  • Onboard 32G eMMC (JNC8J-I3455D)
  • 1* DDR3L/1866 SO-DIMM up to 8GB
  • 1* PCIe x1, 1* M.2 E-key, 1* M.2 M-key
  • 4* COM (COM1/2/3 support 5/12V TTL), 2* USB3.0, 5* USB2.0, 1* GbE
  • Support HDMI + LVDS + eDP
  • Supoort Slim hard drive design
  • Onboard 12V DC-in
  • Thin Mini ITX Form Factor (170mm x170mm)


Share

RAM :

SSD (M.2 NVME):

OS:

Build/Install:
Model – JNC8J-I3455
– JNC8J-I3455D (Onboard 32G eMMC)
Form Factor – Mini-ITX (6.69-in * 6.69-in, 170 * 170mm)
Processor System – Onboard Intel® J3455 1.5GHz (Turbo 2.3GHz) Quad Cores CPU
– Apollo lake J3455 SoC chipset
– Onboard 32G eMMC (JNC8J-I3455D)
– AMI 128M Flash ROM
Expansion Slot – 1* M.2 (E Key)
– 1* M.2 (M key, 2242 for SSD)
– 1* PCIe x1
Memory – 1* DDR3L 1866MHz SO-DIMM up to 8GB
Graphics – Intel® HD Graphics 500, shared memory
– 1* eDP (Max Resolution: 4096×2160 @60Hz)
– 1* LVDS (Max Resolution: 2560×1600@60Hz, Co-lay eDP2)
– 1* HDMI1.4 (Max Resolution: 3840×2160@30Hz, Co-lay eDP3)
– Support Triple Displays
Ethernet – 1* Realtek® RTL8111G GbE
Audio – HD audio: Realtek ALC662
– FP_AUDIO, 3W Amplifier Speaker out
SATA – 1* SATAIII (6.0Gb/s)
Rear I/O – 1* RJ45
– 2* USB3.0
– 1* USB2.0
– 1* Line-out
– 2* COM (RS232, support 5/12V TTL)
– 1* DC-in
Internal Connector – 4* USB 2.0
– 1* PS/2
– 1* LVDS / Inverter (Co-lay eDP2)
– 1* eDP
– 1* HDMI (Co-lay eDP3)
– 1* RS232/422/485 supports 5/12V TTL (COM3)
– 1* RS232 (COM4)
– 1* M.2 E-key (2230)
– 1* M.2 M-key (2242, SATA)
– 1* Parallel
– 1* GPIO (8bit, 5V)
– 1* Audio Header
– 1* speaker (3W Amplifier)
– 1* SMBUS
– 1* AT mode
Watchdog Timer – From Super I/O to drag RESETCON#
– 256 segments (0 ~ 255sec)
Power 12V DC-in, AT/ATX Supported
– AT: Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
Compliance – CE, FCC, RoHS, REACH
Temperature – Operating: -10°C ~ 60°C
– Storage: -20°C ~ 70°C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)
OS Support – Windows 10, Linux
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (ARM) Download (PDF)
Jetway Catalog (Mainboards) Download (PDF)
