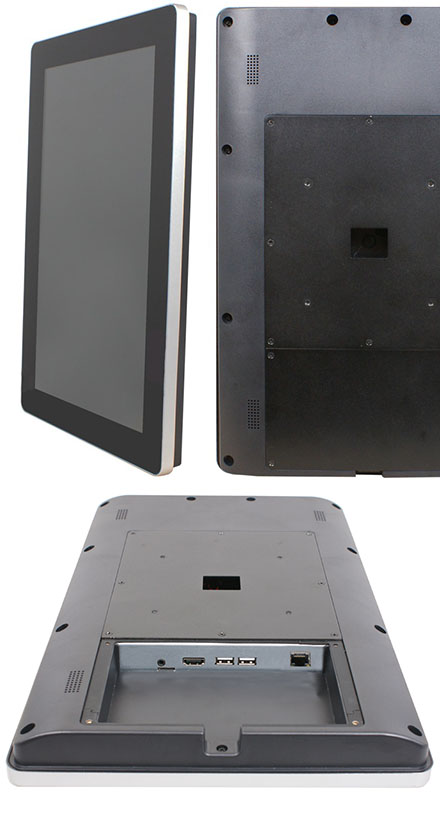

Jetway HPC-P156 (15.6" Panel PC, ARM Cortex RK3288, 2GB RAM, 8GB Flash ROM, POE Input)

PRODUCT IS CURRENTLY NOT AVAILABLE !
Jetway HPC-P156 (15.6" Panel PC, ARM Cortex RK3288, 2GB RAM, 8GB Flash ROM, <b>POE Input</b>)
  • POE Power Input !
  • ARM Cortex RK3288 !
  • Android 5.1/9.0, Debian 9.0 !
  • IP65 Front !



  • 15.6” 350 nits TFT LCD with LED backlight
  • ARM Cortex RK3288 CPU, 4x 1,8 GHz
  • Onboard 1333/2GB DDR3L DRAM
  • Onboard 8G Flash ROM
  • Support Android 5.1/9.0 or Debian 9.0
  • Front IP65 for protection against water and dust
  • Support PoE input


Share

 Model  HPC-156  HPC-P156
 Display
Front Bezel – IP65, NEMA 4 rugged protection, metal front bezel
Display Type – 15.6″ With LED Backlight
Brightness (cd/m²) – 250 nits
Display Color – 262K
Resolution – 1920 x 1080 @ 60Hz resolution
Viewing Angle (H/V) – 170°/170°
Pixel Pitch – 0. 17925 x 0. 17925mm
Aspect Ratio – 16:9
Contrast Ratio – 800:1
Response Time – 35 ms
 Touch Screen
Type – Projected capacitive type
Active Range – 372.0 x 244.5 ± 0.2mm
Transparency – ≧ 85%
Surface Hardness – ≧ 6H (ASTM D3363, pressure 1N/45°)
Glass haze value – ≦ 3%
 Case
Panel Material – Plastic
Case Material – Plastic and Iron
Color – Black
Coating Requirement – Spray Paint
 Main System
CPU – Rockchip® ARM Cortex A17 1.8GHz/QC processor
RAM – Onboard 1333/2GB DDR3L DRAM
Flash ROM – Onboard 8G Flash ROM
Watchdog Timer – 256 levels, 0~255 sec.
Speaker – 2* 2W/8Ohm
Camera – 1* 500W USB (Option)
OS Support – Android 5.1/9.0 or Debian 9.0
 Expansion
Expansion – 1* Micro SD socket
 PoE
Regulatory Compliance – N/A – IEEE802.3af (PoE)
Input Power – N/A – 44~57V input
Pass Through Data Rates – N/A – 10/100/1000 Mbps
Power Consumption – N/A – 18W
 I/O Connector
I/O Connector – 2* USB2.0 (USB1 Co-lay OTG)
– 1* HDMI 1.4
– 1* AUDIO(Line-out +MIC)
– 1* Micro SD Socket
– 1* Power Button
– 1* RJ45
– 1* DC jack 		– 1* PoE PD
 Power Input
Power Input – 12V DC-in – 44~57V input
 Power Consumption
Power Consumption – 18W
 Dimensions
Case Dimensions – 411.56 * 260.68 * 36.4mm
 Compliance
Compliance – CE, FCC, IP65(Front)-Option
 Environment
Temperature – Operating Temperature: -10 ~ 50° C
– Storage Temperature: -20 ~ 60° C
 Safety
Shock – 15G, 11ms duration
Vibration – 5~500Hz/1 Grms
 Warranty
Warranty – 2 Years Limited Warranty (Panel and Touch is only Warranty 1 Year)
Data sheet Download (PDF)
Data sheet Print view
