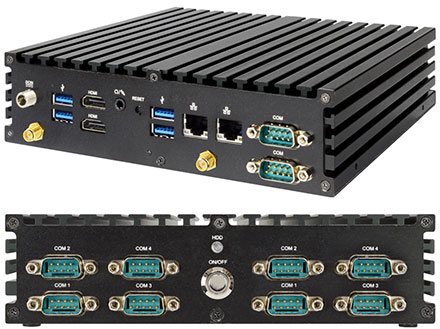

Jetway JC390F841VXU34B (Intel Apollo Lake)

Jetway JC390F841VXU34B (Intel Apollo Lake)
  • JC390F841VXU34B
  • JC390F841XU34B

Januar 2023: Intel i225V LAN anstelle i211AT

  • Intel® Apollo Lake SoC Processor
  • 1 * SO-DIMM DDR3L 1866MHz up to 8GB
  • 4 * USB3.0, 2 * COM, 2 * HDMI, 1 * Audio, 2 * RJ45
  • Product Dimension: 185 x 165 x 48 mm
  • DC-12V_5A_60W Lockable Adapter


Share

489.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.
Add to cart
RAM :

SSD (mSATA):

SSD (M.2 NVME):

OS:

Build/Install:
MB Model – JNF841-J3455
Part No No Expansion 8 LAN 8 COM 4 COM+4 LAN 16-bits GPIO 4 COM+16-bits GPIO
– HBJC390F841XX34B
– HBJC390F841WXX34B (Wifi) 		– HBJC390F841AA34B
– HBJC390F841WAA34B (Wifi) 		– HBJC390F841CC34B
– HBJC390F841WCC34B (Wifi) 		– HBJC390F841CA34B
– HBJC390F841WCA34B (Wifi) 		-HBJC390F841XG34B
– HBJC390F841WXG34B (Wifi) 		-HBJC390F841CG34B
– HBJC390F841WCG34B (Wifi)
4 LAN+16-bits GPIO 32-bits GPIO 4 USB 3.0 4 COM+4 USB 3.0 4 LAN+4 USB 3.0 16-bits GPIO+4 USB 3.0
– HBJC390F841AG34B
– HBJC390F841WAG34B (Wifi) 		– HBJC390F841GG34B
– HBJC390F84WGG34B (Wifi) 		– HBJC390F841XU34B
– HBJC390F84WXU34B (Wifi) 		– HBJC390F841CU34B
– HBJC390F841WCU34B (Wifi) 		– HBJC390F841AU34B
– HBJC390F841WAU34B (Wifi) 		– HBJC390F841GU34B
– HBJC390F841WGU34B (Wifi)
BIOS – AMI EFI Flash ROM
CPU/Chipset – Intel® Apollo Lake SoC Processor (J3455)
Memory 1 * SO-DIMM DDR3L-1866 up to 8GB
Storage – 1 * 2.5” SATA drive bay (only support 2.5″ HDD with a hight ≤ 10mm)
– 1 * M.2 (M-key SATA Interface 2280)
Network – 2 * Intel i255V Gigabit LAN
– 2 * Full size Mini-PCIe slot (Can be installed WiFi module & 3G/4G module)
– 1 * SIM slot
TPM – TPM2.0 on-board (option)
Rear Panel I/O – 4 * USB3.0
– 2 * HDMI 1.4
– 2 * RJ45
– 1 * Audio combo Jack (Line-out & MIC-in)
– 2 * COM (RS232)
– 2 * Antenna holes (WiFi Only)
– Lockable DC-In jack
Front Panel I/O – 1 * Power button + LED
– 1 * HDD LED
– COM (Expansion Module, support RS232/422/485)
– Intel Gigabit LAN (Expansion Module)
– USB3.0 (Expansion Module)
– 16-Bits GPIO (Expansion Module)
Power Source – 60W AC-DC Adapter / DC12V-5A
– AC 90~240V input
Compliance – CE, FCC, LVD
Temperature – Operating temperature: 0 ~ 50° C (Under the condition of using 2.5” HDD)
– Storage Temperature: -20 ~ 60° C (Under the condition of using mSATA)
(The test environment is closed and windless)
– Storage Temperature: -10 ~ 70° C
– Humidity : 90% , non-condensing
Dimensions – 185 (W) x 165 (D) x 48 (H) mm
Packing – Net Weight: 2.4KG
– Gross Weight: 3.4KG
– Color Box dimension: 250 (W) * 118 (D) * 295 (H) mm
OS Support – Windows 10, Linux
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
