Jetway JBC501F9QU-Q87-B (Intel Intel Q87)

PRODUCT IS CURRENTLY NOT AVAILABLE !

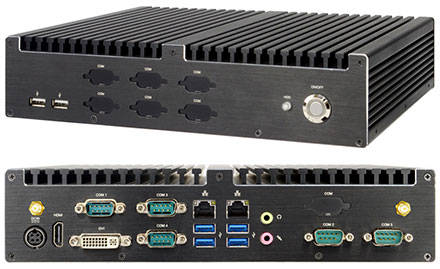

Jetway JBC501F9QU-Q87-B (Intel Intel Q87)

  • Intel LGA 1150 Core i3/i5/i7 Processors(35W)
  • 2 * SO-DIMM Dual CH DDR3 1600MHz up to 16GB
  • 2 * USB2.0, 4 * USB3.0, 4 * COM, 1 * DVI, 1 * HDMI, 1 * VGA, 2 * RJ45
  • M/B Form Factor : Mini ITX (170x170mm)


Share

RAM :

SSD (mSATA):

OS:

Build/Install:
MB Model – JNF9QU-Q87 / Mini-ITX
Part No – HBJC501F9QU-Q87-B (non-WIFI)
– HBJC501F9QUW-Q87-B (WIFI)
BIOS – AMI Flash ROM
CPU/Chipset – INTEL® LGA 1150 Socket Core i7/i5/i3/Pentium Processor (35W)
– INTEL® Q87 express chipset
Memory – 2 * 204-pin SO-DIMM slotssupporting dual channel DDR3-1600 up to 16GB total
Storage – 1 * 2.5” SATA3 6Gb/s internal drive bay (only support 2.5″ HDD with a hight ≤ 10mm)
– 1 * Full-size mSATA/mini-PCI Express shared slot
Network – 1 * Intel i211AT Gigabit LAN, 1 * Intel i217LM Gigabit LAN with vPro & iAMT 9.0 support
– 1 * Half-size mini-PCIE slot (802.11 b/g/n + BT 4.0 installed in WIFI model)
Rear Panel I/O – 4 * USB 3.0 ports
– 1 * HDMI
– 1 * DVI-D
– 1 * VGA
– 2 * RJ45
– Line-out, Mic-in
– 4 * COM (2 * RS232/422/485, 2 * RS232))
– 2 * Antenna holes (HBJC501F9QUW-Q87-B only)
– DC-In jack
Front Panel I/O – 1 * Power button
– 1 * HDD LED
– 2 * USB 2.0 ports
Power Source – AC 90~240V input / 120W AC-DC Adapter_DC19V-6.32A / LEVEL6
Compliance – CE, FCC
Temperature – Operating Temperature: -20 ~ 50° C (The test environment is closed and windless)
– Storage Temperature: -20 ~ 85° C
– Humidity : 90%, non-condensing
Packing – Net Weight: 4.2KG
– Gross Weight: 5KG
– Color Box dimension: 406 (W) * 148 (D) * 380 (H) mm
OS Support – Windows 7, Windows 8.1, Windows 10, Linux
Warranty – 2 Year limited warranty
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
