Jetway HBJC366F831W-293B (Intel Bay Trail)

PRODUCT IS CURRENTLY NOT AVAILABLE !

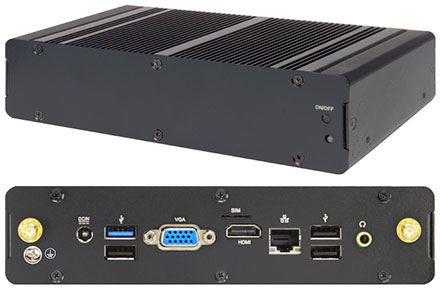

Jetway HBJC366F831W-293B (Intel Bay Trail)

  • Intel® Bay Trail N2930 SoC Processor
  • 1 * DDR3L 1333MHz SO-DIMM, up to 8GB
  • 1 * HDMI, 1 * VGA, 1 * USB3.0, 3 * USB2.0,1 * RJ45, 1 * SIM Card Slot
  • 1 * Full size Mini PCIe & 1 * M.2 (M-key, 2242/2280) & 1 * M.2 (E-key, 2230)
  • M/B Form Factor : 3.5” SBC (148x102mm)
  • DC-12V_40W Adapter


Share

RAM :

SSD (M.2 NVME):

OS:

Build/Install:
MB Model – JNF831-2930 / 3.5” SBC
Part No – HBJC366F831-293B (non-WIFI)
– HBJC366F831W-293B (WIFI)
BIOS – AMI Flash ROM
CPU/Chipset – Intel® Bay Trail N2930 SoC Processor
Memory – 1 * DDR3L 1333MHz SDRAM SO-DIMM up to 8GB
Storage – 1 * 2.5” SATAIII 6Gb/s internal drive bay (only support 2.5″ HDD with a hight ≤ 10mm)
– 1 * M.2 (M-key, 2242/2280) for SSD
Network – 1 * Realtek RTL8111H GbE
– 1 * Full-size mini-PCIe slot (Expandable WIFI module)
– 1 * M.2 (E-key 2230) PCIe slot (Expandable WIFI module)
Rear Panel I/O – 1 * USB 3.0 , 3 * USB 2.0
– 1 * HDMI (Max. Resolution: 1920 x 1200@60Hz)
– 1 * VGA (Max. Resolution: 1920 x 1200@60Hz)
– 1 * RJ45 , 1 * Line-out
– 1 * Micro-SIM Card slot
– 1 * 12V DC-in jack
Front Panel I/O – 1 * Power button, 1 * Power LED
Power Source – FSP AC-DC Adapter / AC 90~240V / DC12V-3.3A-40W
Compliance – CE, FCC, RoHS, ErP Ready
Temperature – Operating Temperature: 0 ~ 50° C
– Storage Temperature: -20 ~ 70° C
Dimensions – 184 (W) x 106 (D) x 42 (H) mm
Packing – Net Weight: 1.4KG
– Gross Weight: 2.4KG
– Color Box dimension: 265 (W) *200 (D) * 100 (H) mm
OS Support – Windows 7, Windows 8.1, Windows 10, Linux
Warranty – 2 Year limited warranty
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
