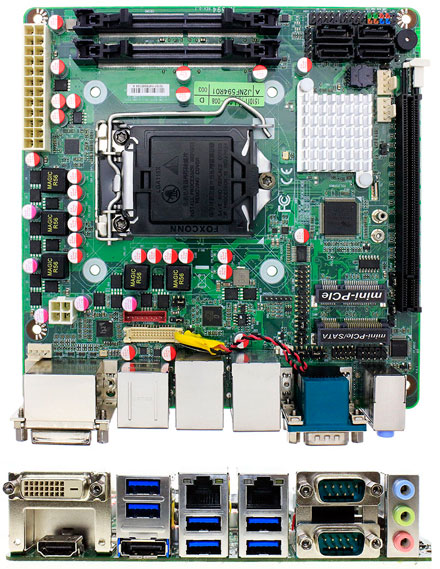

Jetway NF594-Q170 (Intel Q170 Express)

Jetway NF594-Q170 (Intel Q170 Express)

  • Intel® Q170 Express Chipset
  • Supports Intel LGA 1151 Socket Core™ i3, i5, i7 & Pentium Processors
  • 2 * Dual Channel DDR4 2133MHz up to 32GB
  • 2* GbE LAN (Intel i211AT & i219LM)
  • Support Intel vPro, Active Management Technology (iAMT 11.0)
  • Integrated Realtek ALC662VD Audio CODEC 6-CH
  • Support 1*PCIe x16 slot
  • Support 4 * SATAIII (6.0Gb/s), Support RAID 0,1,5,10
  • HDMI/DP/DVI-D Video Outputs
  • Built-in Watchdog Timer Technology
  • Mini-ITX Form Factor (170mm * 170mm)


Share

319.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.
Add to cart
RAM :

SSD (mSATA):

Build/Install:
 Form Factor
Dimensions - Mini-ITX (170 * 170mm)
 Processor System
CPU - Intel LGA 1151 Socket Core i7 / i5 / i3 Pentium Processor
Core Number - (by CPU)
Max Speed - (by CPU)
L2 Cache - (by CPU)
Chipset - Intel Q170 Express chipset
BIOS - AMI 128Mb Flash ROM
 Expansion Slot
PCI - 0
Mini-PCIe - 2 (1* Half size & 1*Full size co-lay with mSATA)
mSATA - 1 ( Full size , co-lay with mPCIe)
PCIe - 1 x16
CFast Card Socket - 0
CF Card Socket - 0
 Memory
Technology - DDR4 2133MHz Dual CH
Max. - 32GB
Socket - 2 * SO-DIMM
 Graphics
Controller - (by CPU)
VRAM - Shared Memory
VGA - 0
LVDS - 1 * Onboard 24-bits dual channel connector
HDMI - 1 ( Hdmi2.0 , Max. Resolution: 4096*2160@60Hz)
DVI-D - 1 ( Max. Resolution: 1920*1080 )
DisplayPort - 1 ( DP1.2, Max. Resolution: 4096*2304@60Hz )
MultiDisplay - Yes (Triple Display)
 Ethernet
Ethernet - 10/100/1000 Mbps
Controller - GbE LAN: INI219LM + i211AT
Connector - 2* RJ 45
 Audio
CODEC - HD Audio : Realtek ALC662VD
Channel - 6 Channel
 SATA
Max Data Transfer Rate - 4 * SATAIII (6.0Gb/s)
RAID - Yes(RAID 0,1,5,10)
 Rear I/O
VGA - 0
DVI-D - 1
HDMI - 1
DisplayPort - 1
Ethernet - 2
USB - 6 * USB 3.0
Audio - 3 ( MIC , Line-out, Line-in )
Serial - 2 (COM1 support RS232/422/485 )
eSATA - 0
PS2 - 0
 Internal Connector
USB - 2 * USB 2.0
PS/2 - 1
LVDS / inverter - 1
VGA - 0
Serial - 2 ( COM 3 support RS232/422/485 )
SATA - 4 * SATAIII ( 6.0Gb/s )
mPCIe - 2 (1*Half size , 1*Full size co-lay with mSATA)
Parallel - 0
mSATA - 1 ( Full size co-lay with mPCIe )
CIR - 0
GPIO 8-bit - 4in / 4out
Chassis intrusion - 1
Audio Header - 1
TPM - 1 (Option)
 Watchdog Timer
Output - From Super I/O to drag RESETCON#
Interval - 256 segments, 0,1,2…255sec/min
 Power Requirements
Input PWR - 24 pin/4 pin ATX PWR Connector
Power On AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready
Certifications
Certifications - CE, FCC, RoHS, REACH
 Environment
Temperature - Operating: 0°C – 60°C
- Storage: -20°C – 85°C
